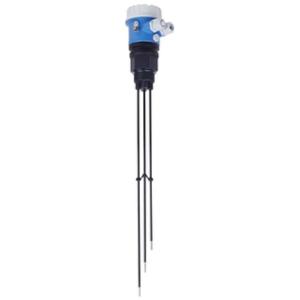

FTW31-A2A5AA0A Conductive Point Level Detection Liquipoint FTW31
Approval: A Non-hazardous area
Process Connectio: 2 Thread ANSI NPT1-1/2, PPS
Sensing Point: A5 5x rod, 316L
Probe Length: A 600 mm ..... mm L, 316L
Cable Entry: A Gland M20
Electronics; Output: 0 Separate instrumentation
Additional Option: A Basic version
Specs at a glance
Process temperature
-40 °C ... 100 °C
(-40 °F ... 212 °F)
Process pressure / max. overpressure limit
Vacuum ... 10 bar
(Vacuum ... 145 psi)
Min. conductivity of medium
10 µS/cm
Field of application
The Liquipoint FTW31 offers simple and safe point level detection
in conductive liquids. It offers numerous measuring possibilities
due to multipoint detection (up to 5 rods).
For use in conductive liquids (as of 10μS/cm). For overfill
prevention, dry running protection,
two-point control of pumps or multiple point detection.
- Process connections: Threads
- Sensor length: 0.1 to 4m (3.9 to 157")
- Temperature: -40 to 100°C (-40 to 212°F)
- Pressure: -1 to 10bar (-14.5 to 145psi)
- International explosion protection certificates, overfill
prevention and leakage detection certificate WHG
Benefits
- Cost-effective probe for conductive liquids with detection of up to
five point levels with one probe
- No calibration required
- Standard setting for the most common conductive liquids
- No moving parts in the tank - long service life, reliable operation
with no wear or blockages
